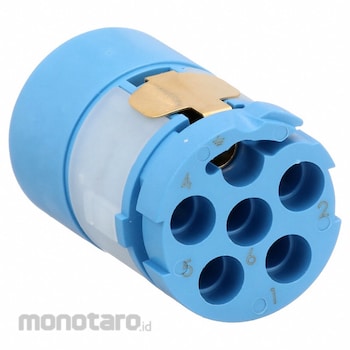

HARTING Circular Connector Inserts
#Grup produk P110099949
Spesifikasi
| UNSPSC | 31160000 |
|---|---|
| Application | Power |
| Cable Diameter (mm) | 2 |
| Connection Type | Crimp |
| Current Rating (A) | 28 |
| For Connector Type | M23 |
| Includes Ground | PE |
| Includes Poles | No |
| Insert Color | Blue |
| Insert Material | Polyamide |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Insulation Resistance (ohm) | 1.00x10^13 |
| Minimum Mating Cycles | 500 |
| Minimum Operating Temperature (°C) | -40 |
| Number of Contacts | 5 + PE |
| Number of Poles | 5 |
| Series | Circular Connectors M23 |
| Standards | China RoHS; CSA-C22.2 No. 18.3 QCRV7.E479780; ELV Compliant; RoHS Complaint; UL 514B QCRV.E479780 |
| Temperature Range (°C) | -40 to 125 |
| Voltage Rating (V) | 600 |
| Wire Size (mm) | 0.75 to 4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These crimp termination inserts fit inside circular connector housings to hold poles and sockets. They use crimping tools to make cold welds between conductors and inserts that resist corrosion.
