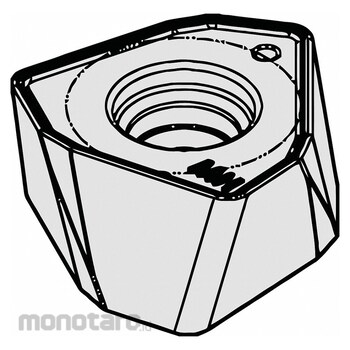

WIDIA Trigon (W) Indexable Milling Insert
#Grup produk P110096368
Spesifikasi
| UNSPSC | 31160000 |
|---|---|
| ANSI Code | WOEJ120712SRMH |
| Chip-Breaker | Yes |
| Chip-Breaker Style | Double Sided |
| Clearance Angle | 0° |
| Cutting Direction | Right Hand |
| Chip-Breaker Code | MH |
| Corner Radius (mm) | 1.27 |
| Finish - Machining | AlTiN |
| For use with | M370 Series Copy Mills |
| Hole Type | 70° to 90° Double Countersink Hole |
| ISO Number | WOEJ120712SRMH |
| Included Angle | 101.5° |
| Inscribed Circle (inch) | 0.4720 |
| Insert Holding Type | Taper Screw |
| Insert Size | 120712 |
| Insert Style | WOEJ |
| Manufacturer Grade | WS40PM |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Mounting Hole Diameter (mm) | 4.80 |
| Mounting Style | Taper Screw |
| Number of Cutting Edges | 6 |
| Primary Material Application | Nickel; Stainless Steel; Steel; Titanium |
| Primary Material Application ISO Code | M; P; S |
| Series | M370 |
| Shape | Trigon |
| Thickness (inch) | 0.2870 |
| Through Hole Inside Diameter (mm) | 4.80 |
| Wiper Insert | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
MH Geometry is the First Choice for High-Strength Steel and Cast IronUlasan Produk
