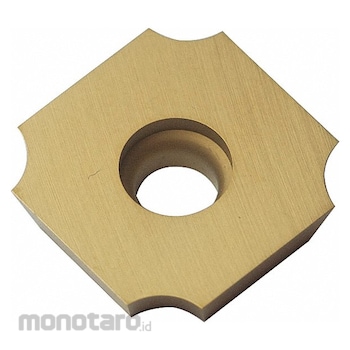

DORIAN Square (S) Indexable Milling Insert
#Grup produk P110095925
Spesifikasi
| UNSPSC | 23171618 |
|---|---|
| Insert Style | SDGX |
| ISO Number | SDGX-1904C20-E-DUP25UT |
| Manufacturer Grade | DUP25UT |
| Shape | Square |
| Number of Cutting Edges | 4 |
| ANSI Code | SDGX-19C05-E |
| Chip-Breaker | No |
| Coating Process | PVD |
| Corner Radius (inch) | 0.0780 |
| Cutting Application | Milling |
| Cutting Direction | Neutral |
| Cutting Edge Length (inch) | 3/4 |
| Finish - Machining | TiAlN+TiN |
| For Toolholder | REC15-200-CN4-075; REC15-200-CN4-100; REC15-200-CN4-R8; REC15A-300-CN4-100; REC15A-400-CN4-150 |
| For use with | CNMG Recycle Milling Cutter |
| Inscribed Circle (inch) | 3/4 |
| Insert Holding Type | Torx Screw |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Diameter (inch) | 0.22 |
| Mounting Style | Torx Screw |
| Primary Material Application | Aluminium, Brass, Bronze, Copper, Hardened Steel, Magnesium, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application ISO Code | K; M; N; P; S |
| Rake | 15° |
| Thickness (inch) | 0.188 |
