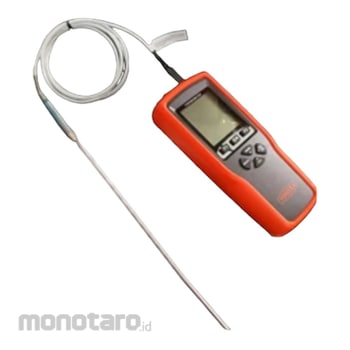

Yowexa YET-710L Single Channel PT 100 Temperature Data Logger
Model YET-710L
Channel 1
Record Function Yes
Yowexa Single Channel PT 100 Thermometer Resolution
#Grup produk P110089128
Spesifikasi
| Temperature Unit | °C, °F |
|---|---|
| Battery Life (hour) | About 120 (Condition: instrument is working continuously, backlight off, battery capacity 1200mAh, environment temperature 25°C) |
| Compatible System | Windows XP/Vista/7/8/10 |
| Display | Dot matrix LCD display, with backlight |
| Highest Accuracy after Point Calibration (°C) | ±0.015 |
| Measurement Range (°C) | -200-800 |
| Measuring Rate (time/s) | 1 |
| Operating Temperature (°C) | -10-50 (Non-Condensing) |
| Output File Format | txt, csv, xls, dlg |
| Power Supply | 3 pcs 1.5V AAA alkaline batteries |
| Protection Class | IP52 |
| Record Sampling | Interval Adjustable from 1~86399 seconds |
| Storage Capacity | 20000 groups of measuring data |
| Storage Temperature (°C) | -20~60 (Without batteries) |
| User Calibration | Method Multi-Point Calibration |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
· 32-bit high-speed low-power MCU· PT100 and PT1000 probe supported
· Resolution up to 0.001°C (YET-710L)
· Factory accuracy ±(0.05%|t|+0.05)°C (YET-710L)
· Accuracy up to ±0.015°C after point calibration (YET-710L)
· Measuring range -200~800°C
· Display temperature graph (YET-710L）
· Over-limit alarm function
· Probe fault alarm function
· Maximum, minimum and average data displayable
· 20000 groups of temperature data recordable (YET-710L）
· 4 kinds of format files generated (YET-710L)
· Support multiple power solutions
Use
· Laboratory physical measurement and recording· Food
· Medicine
· Household
· Industry, aerospace
· Cold chain transportation
· Car market
· Metal processing
· Livestock
· Supermarket
