Four e's Scientific Rotary Evaporator
#Grup produk P110057785
Spesifikasi
Frequency (Hz) | 50/60 |
---|---|
Input Voltage AC (V) | 100 to 240 |
Motor Type | Brushless DC Motor |
Temperature Range (°C) | Room Temperature +5 to 90 (Water); +5 to 180 (Oil) |
Control Accuracy (°C) | Water ±1.5, Oil ±3 |
(DIN_EN60529) Protection Class | IP42 |
Display | LED |
Heater Power (W) | 1300 |
Heating Bath Capacity (L) | 5 |
Heating Bath Dimension WxDxH (mm) | 300x300x205 |
Lifting method | Manual |
Main Unit Dimension WxDxH (mm) | 400x320x540 |
Permissible Ambient Temperature (°C) | 5 to 40 |
Permissible Relative Humility | 0.8 |
Rotation Speed (rpm) | 20 to 320 |
Rotation Time Interval (s) | 5-999 |
Stroke Displacement (mm) | 180 |
Tilt Angle Of Evaporation Flask | 0-360° |
Time Setting Range (minute) | 1-999 |
Vacuum Degree (mbar) | Max. 4 |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description

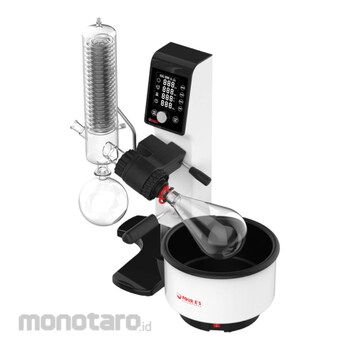

The RV131 Rotary Evaporator stands out in many advantages. It comes with a large LED display and touch keys, along with an adjustable knob that helps you easily set and monitor parameters. The double-layer vertical condenser with 1500cm² cooling surface provides efficient vapor collection and sample recovery. The PID controller ensures precise temperature control.
The Rotary Evaporator, also known as rotovap, is a laboratory equipment for liquid distillation and purification. It is widely used in chemical, pharmaceutical, biotechnology industries and R&D labs to separate and concentrate samples. It usually works with Diaphragm Vacuum Pump and Recirculating Chiller as a whole system to meet the production and experimental requirements.
The Rotary Evaporator, also known as rotovap, is a laboratory equipment for liquid distillation and purification. It is widely used in chemical, pharmaceutical, biotechnology industries and R&D labs to separate and concentrate samples. It usually works with Diaphragm Vacuum Pump and Recirculating Chiller as a whole system to meet the production and experimental requirements.
Feature
- Large LED display to easily set and monitor process parameters- The touch keys and adjustable knob let you easily set the rotation speed, heating temperature, operation time, and cycle times (clockwise and/or counterclockwise cycles).
- The device also comes with a mistouch prevention lock to avoid changes through accidental touch
- The adjustment knob can be turned fast or slow to change parameters rapidly or accurately.
- The 5L water-oil heating bath with heating temperature range of up to 180℃ (oil)
- The device comes with a Brushless DC motor with rotation speeds ranging from 20 to 320 rpm
- Comes with PID temperature controller, overheat protection, dry-burning protection, and automatic power-off functions
- Double-layer vertical condenser with 1500cm² cooling surface for efficient vapor collection and sample recovery
- High elastic graphite filled PTFE seal and compression spring bring excellent sealing as well as high-temperature, corrosion, and abrasion resistances.
- Manual lift for precise positioning of the glassware; the lifting height ranges up to 180mm and the tilt angle range is 0-360° (evaporation flask can be positioned on the left or right side)
- Ejection mechanism ensures easy removal of evaporating flask
- Clockwise And Anti-clockwise
- Overload Protection
