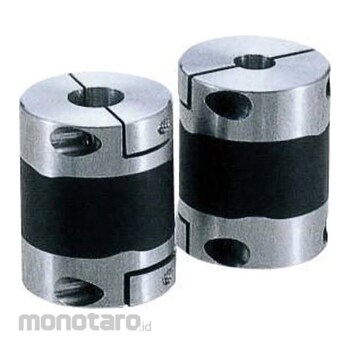

Nabeya Bitech (NBK) Capricorn LimX XGT/XGS Series
#Grup produk P110050676
Spesifikasi
| Dimensions f (mm) | 8 |
|---|---|
| Shaft Hole Diameter D1 (Φmm) | 20 |
| Shaft Hole Diameter D2 (Φmm) | 20 |
| Total Length W (mm) | 40 |
| Allowable Declination Angle (°) | 1.5 |
| Allowable Eccentricity (mm) | 0.2 |
| Axial Displacement (mm) | ±0.3 |
| Dimension L (mm) | 15.5 |
| Dimensions c (mm) | phi 64.5 |
| Kinds | Rubber Type |
| Material (main body) | A2017 |
| Maximum Rotation Speed (rpm) | 16000 |
| Maximum Shaft Hole Diameter (mm) | 20 |
| Moment of Inertia (kg.m²) | 2.2× 10-5 |
| Outer Diameter (φmm) | 39 |
| Regular torque (N・m) | 7 |
| Screw Tightening Torque (N・M) | 4 |
| Static Torsional Spring Constant (N m/rad) | 440 |
| Thread Dimension M | M5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Sample image (Please check the specifications of each product number for details)Ulasan Produk
