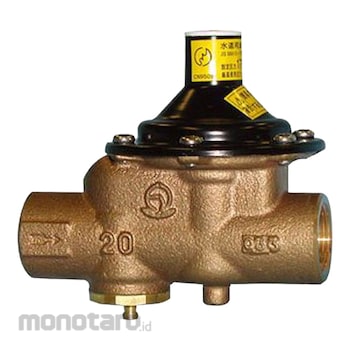

VENN Water Reducing Valve RD-50SHN Type
#Grup produk P110049591
Spesifikasi
| Included Accessories | Thermal insulation case |
|---|---|
| Material (Main Unit) | CAC406 |
| Type | For 170kPa |
| Mechanism | Non-return mechanism, negative pressure operation mechanism |
| Flow Rate when Opened (L/minute) | 30 or more |
| Diaphragm Material | NBR |
| End Connection | JIS Rc3 / 4 screw |
| Face-to-face Dimension (mm) | 115 |
| Fluid Temperature (°C) | 5 - 55 |
| Material (disc) | NBR |
| Mounting Direction | Horizontal / Vertical Free (excluding strainer cap upward) |
| Nominal Diameter A | 20 |
| Nominal Diameter B | 3/4 |
| Pressure (kPa) | [Closing of the non-return mechanism] 3 or more, [opening of the negative pressure operating mechanism] -55 or less, [closing of the negative pressure operating mechanism] 50 or less |
| Primary Side Suitable Pressure (MPa) | 0.75 or less |
| Secondary Pressure (MPa) | [Settings] 0.17 |
| Strainer | 60 mesh (with built-in pressure reducing valve) |
| Suitable fluid | Tap water |
| Withstand Voltage Test Pressure (MPa) | 1.75 by water pressure |
