The thermo element uses SUS316L, which has excellent corrosion resistance and durability. Horizontal, vertical and horizontal mounting is free.
Since it operates at a temperature 10°C lower than the saturated steam temperature, there is no discharge of raw steam or empty valve body, which saves energy.

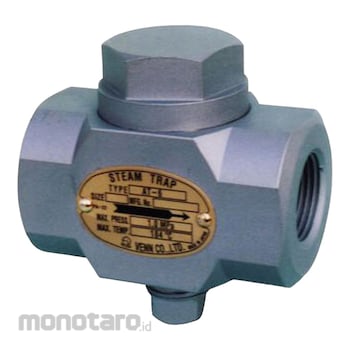

VENN Steam Trap AT-6 Type (Screw-In, Main Body Sus)
#Grup produk P110049096
Sebelum PPN:
Rp6.299.900 - Rp6.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material (Main Unit) | SUS |
|---|---|
| Type | Thermo Element Type |
| Fluid Temperature (°C) | 184 or less |
| Suitable fluid | Saturated steam |
| Applicable Pressure Range (MPa) | 1.0 or less |
| Back Pressure Tolerance | 50% or less of primary pressure (minimum differential pressure 0.03MPa) |
| End Connection | JIS Rc thread |
| Mounting Direction | Horizontal, vertical, horizontal mounting |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Type of Connection | Screwed |
| Withstand Voltage Test Pressure (MPa) | (By water pressure) 1.5 / (Thermo element) 0.5 |
