Since the drain does not stay in the pipes with a forward gradient, it is possible to prevent corrosion and freezing of the pipes.
Drain and air at the beginning of ventilation are quickly discharged.
The valve closes immediately after draining.
The entrance side is a hexagonal union pipe, which makes it easy to install.

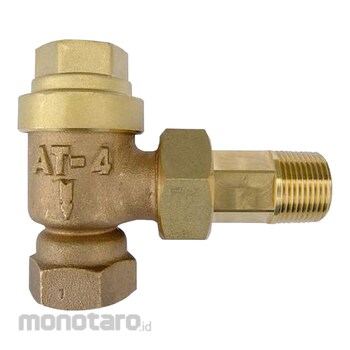

VENN Steam Trap AT-4A Type
#Grup produk P110049050
Sebelum PPN:
Rp2.899.900 - Rp3.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material (Main Unit) | CAC406 |
|---|---|
| Type | Thermo Wax Type |
| Fluid Temperature (°C) | 150 or less |
| Suitable fluid | Steam |
| Applicable Pressure Range (MPa) | 0.01 - 0.35 |
| Dimension C (mm) | 49 |
| End Connection | Inlet: JIS R thread (union joint), Outlet: JIS Rc thread |
| Material (Valve Member) | SUS |
| Material (Valve Seat) | SUS |
| Withstand Voltage Test Pressure (MPa) | (At water pressure) 0.53 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
