Stable control is achieved by adopting a piston guide structure and a special seal ring.
It can be used for a wide range of pressure and flow rates.
The RP-6 type has an automatic lock mechanism (nominal diameter 15 to 80), and the pressure can be easily adjusted by manually operating the handle.
It is a compact design.

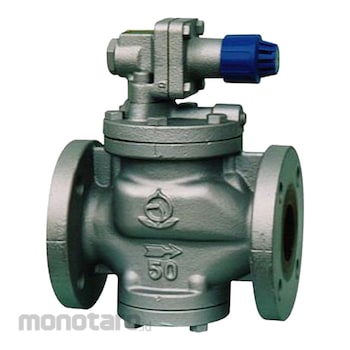

VENN RP6-G Benten FC / SUS Pressure Reducing Valve [Flange / Steam (0.03-0.8Mpa)]
#Grup produk P110047210
Sebelum PPN:
Rp10.999.900 - Rp219.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material (Main Unit) | FC (Gray Cast Iron) |
|---|---|
| Type | Manual Handle Type |
| Allowable Leakage (%) | 0.05 Or Less Of Rated Flow |
| End Connection | JIS 10K FF flange |
| Fluid Temperature (°C) | 184 or less |
| Material (Valve Member) | SUS |
| Material (Valve Seat) | SUS |
| Maximum Decompression Ratio | 20:01:00 |
| Primary Side Suitable Pressure (MPa) | 1 or less |
| Secondary Pressure Adjustment Range (MPa) | 0.03 - 0.8 |
| Suitable fluid | Steam |
