Uses chlorine water resistant EPDM.
Hygienic structure without liquid pool.
Reliable operation from low differential pressure to high differential pressure.
Since the pressure reducing valve is not disassembled, safe and reliable construction is possible.
Even after construction, the water pressure test can be performed with the pressure reducing valve installed.
Easy and simple new test gag method adopted.

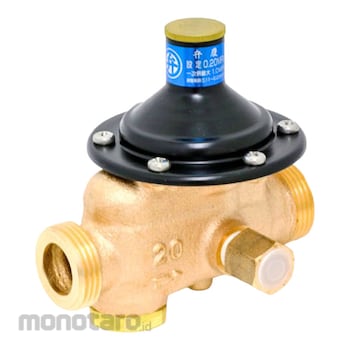

VENN RD44N-FMPL2 Benkei New Standard Compliant Door-To-Side Water Supply Pressure Reducing Valve [0.20MPa/Set]
#Grup produk P110046992
Spesifikasi
| Included Accessories | Union Fittings (Pipes, Nuts, Gaskets), Heat Insulation Cases (Self-Extinguishing), Test Gags, Pressure Gauge Fittings (Secondary Side, Body Installed) |
|---|---|
| Material (Main Unit) | CAC406 |
| Strainer | 60 Mesh |
| Diaphragm Material | Chlorine Water Resistant EPDM |
| End Connection | JIS R3 / 4 screw (for both P and V) |
| Fluid Temperature (°C) | 5 to 90 (5 to 40 when using pipe end core) |
| Material (disc) | Chlorine water resistant EPDM |
| Maximum Decompression Ratio | 10:01:00 |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.02 |
| Mounting Direction | Horizontal And Vertical Freedom |
| Nominal Diameter A | 20 |
| Nominal Diameter B | 3/4 |
| Rated Flow (L/minute) | 50 |
| Secondary Pressure (MPa) | 0.2 |
| Secondary Pressure Adjustment Range (MPa) | 0.11 - 0.23 |
| Suitable fluid | Tap Water / Hot Water |
