Calm flow red water countermeasures: Main body bronze + pipe end core prevents red water.
It is a low noise design.
It is about 50% smaller and lighter than the conventional FC product.
Even if the diaphragm is damaged, water will not leak to the outside.
It has a built-in strainer. (Equivalent to 40 mesh with a nominal diameter of 50 or less)

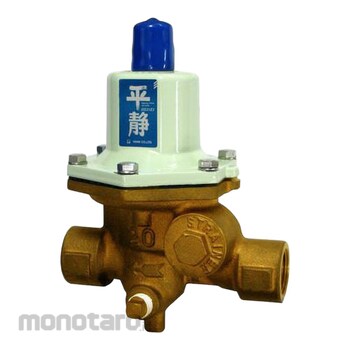

VENN RD31N-FH Calm New Standard Compliant Pressure Reducing Valve [Screw-In / 0.3-0.7Mpa]
#Grup produk P110046938
Sebelum PPN:
Rp8.199.900 - Rp16.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material | (Main Part) CAC406, (Spring Case) ZDC |
|---|---|
| Material (Main Unit) | CAC406 |
| Use for (MPa) | 1.0 or Less |
| Diaphragm Material | NBR |
| End Connection | JIS Rc Screw |
| Fluid Temperature (°C) | 5 to 90 (5 to 40 when using pipe end core) |
| Material (disc) | NBR |
| Maximum Decompression Ratio | 10:01:00 |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.05 |
| Mounting Direction | Horizontal / Vertical (Excluding strainer cap upward) |
| Primary Side Suitable Pressure (MPa) | 1 or less |
| Secondary Pressure Adjustment Range (MPa) | 0.3 - 0.7 |
| Suitable fluid | Water / warm water (air / inert gas) |
