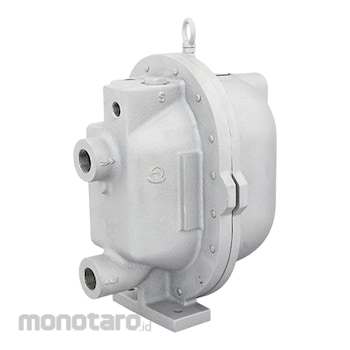

VENN Pumping Trap Pump Function (Open System) Made By FCD
#Grup produk P110046859
Spesifikasi
| Material | (Float Case) SUS |
|---|---|
| Material (Main Unit) | FCD |
| Fluid | (Pressurized Fluid) Steam Or Air |
| Operating Pressure Range (MPa) | 0.5 or less |
| Classification | Pumping Trap |
| Pressurizing (MPa) | (Fluid) 0.03 - 0.5 |
| Back Pressure Tolerance | For pressurized fluid steam: Pressurized fluid pressure x 50% or less, For pressurized fluid air: Pressurized fluid pressure x 80% or less |
| End Connection | JIS R c1 screw |
| Fluid Temperature (°C) | 160 or less |
| Lid Material | FCD |
| Mounting Direction | Upright mounting on horizontal piping |
| Nominal Diameter A | 25 |
| Suitable fluid | Steam / drain |
| Withstand Voltage Test Pressure (MPa) | (Main body) 0.75 at water pressure |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
