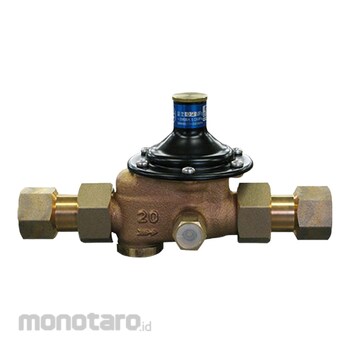

VENN Pressure Reducing Valve with Telescopic Tube For Water Supply From Door To Door (For Water And Hot Water) RJ-44N Type
#Grup produk P110046637
Sebelum PPN:
Rp2.899.900 - Rp3.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Included Accessories | Union Fittings (Pipes, Nuts, Gaskets), Heat Insulation Cases (Self-Extinguishing), Test Gags, Pressure Gauge Fittings (Secondary Side, Body Installed) |
|---|---|
| Material (Main Unit) | CAC406 |
| Strainer | 60 Mesh |
| Allowable Leakage | None (Pressure Gauge Visual Inspection) |
| Diaphragm Material | Chlorine Water Resistant EPDM |
| Expansion / Contraction (mm) | Shrinkage From Maximum Face-To-Face Distance 12 |
| Fluid Temperature (°C) | 5 To 90 (5 To 40 When Using Pipe End Core) |
| Material (disc) | Chlorine Water Resistant EPDM |
| Maximum Decompression Ratio | 10:1 |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.02 |
| Nominal Diameter A | 20 |
| Nominal Diameter B | 3/4 |
| Primary Side Suitable Pressure (MPa) | 1.0 or less |
| Rated Flow (L/minute) | 50 (Differential Pressure 0.1MPa or More) |
| Suitable fluid | Tap Water / Hot Water |
| Withstand Voltage Test Pressure (MPa) | 1.75 by Water Pressure |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
