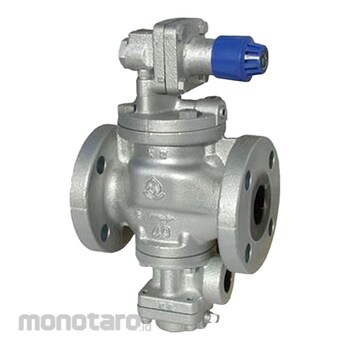

VENN Pressure Reducing Valve with Built-In Trap RP-6BD Type (For Steam) (Main Part CAC)
#Grup produk P110046576
Sebelum PPN:
Rp12.999.900 - Rp18.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material (Main Unit) | FC |
|---|---|
| Type | Pilot Type |
| End Connection | JIS 10K FF Flange |
| Fluid Temperature (°C) | 184 or less |
| Handle Color | Blue |
| Maximum Decompression Ratio | 20:1 |
| Maximum Discharge (L/hour) | [Drain (pressure difference: discharge amount)] 0.05 MPa: 100 / 0.1 MPa: 160 / 0.2 MPa: 260 / 0.3 MPa: 340 / 0.4 MPa: 400 / 0.6 MPa: 500 / 0.8 MPa: 550 / 1.0 MPa: 590 |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.05 |
| Mounting Direction | Upright Mounting On Horizontal Piping |
| Primary Side Suitable Pressure (MPa) | 1.0 or less |
| Secondary Pressure Adjustment Range (MPa) | 0.03 - 0.8 |
| Suitable fluid | Steam |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
