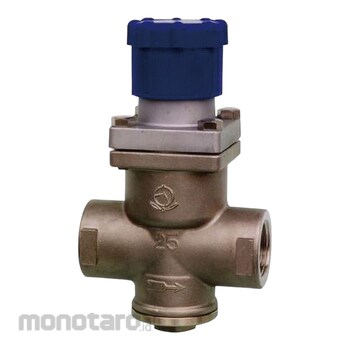

VENN Pressure Reducing Valve RD-41 Type (For Steam) (Body SCS, Screw-In)
#Grup produk P110046415
Spesifikasi
| Material (Main Unit) | SCS |
|---|---|
| Type | Direct Acting |
| Dimension H (mm) | 128 |
| Dimension G (mm) | 55 |
| End Connection | JIS Rc thread |
| Fluid Temperature (°C) | 220 or less |
| Maximum Decompression Ratio | 20:1 |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.02 |
| Mounting Direction | Upright mounting on horizontal piping |
| Primary Side Suitable Pressure (MPa) | 1.0 or less |
| Suitable fluid | steam |
| Type of Connection | Screwed |
