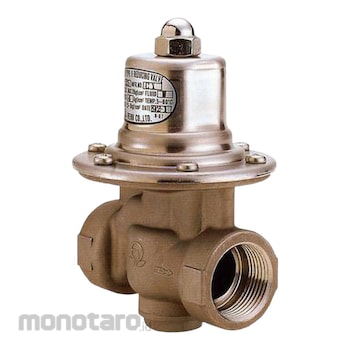

VENN Pressure Reducing Valve RD-20N Type (For Water / Liquid, Air / Gas)
#Grup produk P110046318
Spesifikasi
| Material (Main Unit) | SCS |
|---|---|
| Type of Connection | Screwed |
| Fluid Temperature (°C) | 5-60 |
| Mounting Direction | Horizontal And Vertical Freedom |
| Allowable Leakage | None (pressure gauge visual inspection) |
| Diaphragm Material | NBR |
| End Connection | JIS Rc thread |
| Fluid viscosity (cSt) | Liquid: 800 or less |
| Material (disc) | NBR |
| Maximum Decompression Ratio | Water and liquid 10: 1 Air and gas 20: 1 |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.05 |
| Primary Side Suitable Pressure (MPa) | 2.0 or less |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable fluid | Water, Liquid, Air, Gas (Material That Does Not Corrode Material) |
| Withstand Voltage Test Pressure (MPa) | 3.0 by Water Pressure |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
