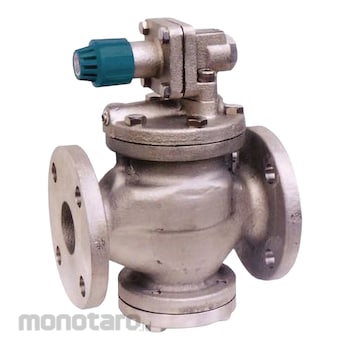

VENN Pressure Reducing Valve (For Steam) RP-8 Type
#Grup produk P110046114
Sebelum PPN:
Rp67.999.900 - Rp149.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material (Main Unit) | SCS |
|---|---|
| Type | Pilot Type |
| Allowable Leakage (%) | 0.05 Or Less Of Rated Flow |
| Diaphragm Material | SUS |
| End Connection | JIS 10K FF flange |
| Fluid Temperature (°C) | 200 or less |
| Handle Color | Green |
| Material (Valve / Valve Seat) | SUS |
| Maximum Decompression Ratio | 20:1 |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.05 |
| Mounting Direction | Upright mounting on horizontal piping |
| Primary Side Suitable Pressure (MPa) | 1.0 or less |
| Secondary Pressure Adjustment Range (MPa) | 0.03 - 0.8 |
| Suitable fluid | Steam |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
