It is more than 3 times more durable than the manufacturer's conventional products.
It can be used in a wide pressure range from 0 to 1.0 MPa.
Vertical and horizontal mounting is free.
The coil exterior uses thermosetting resin that is resistant to heat (nominal diameter 25 or less).

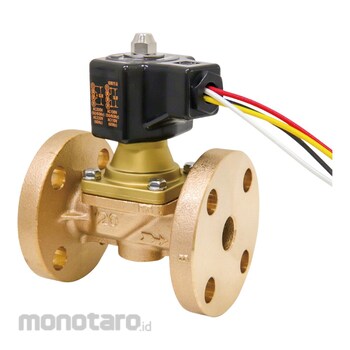

VENN PF22-W Momotaro II Bronze Solenoid Valve [Flange / Energized Open]
#Grup produk P110046035
Sebelum PPN:
Rp12.999.900 - Rp18.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Shape | Straight |
|---|---|
| Material (Main Unit) | CAC408 (Bronze) |
| Type | Solenoid Valve |
| Operating Temperature Range (°C) | 5 to 180 (100 or Less for Hot Water) |
| Ambient Temperature (°C) | 5 - 60 |
| End Connection | JIS 10K FF flange |
| Handle Type | None |
| Material (Valve Member) | C3604 |
| Material (disc) | PTFE |
| Minimum Pressure Differential Before and After Valve (MPa) | 0 (0.03 if the coil is horizontal) |
| Mounting Direction | Horizontal / vertical (excluding the coil downward with respect to the mounting piping) |
| Protection Class | Dust Proof / Splash Proof / Indoor Use (When Used Outdoors, Use TB-03 Type Terminal Box) |
| Rated Voltage (V) | AC100/20 (50/60Hz), AC110/220 (60Hz shared) |
| Suitable fluid | Steam / water / air / oil (about kerosene / light oil) |
| Type of Insulation | H class |
