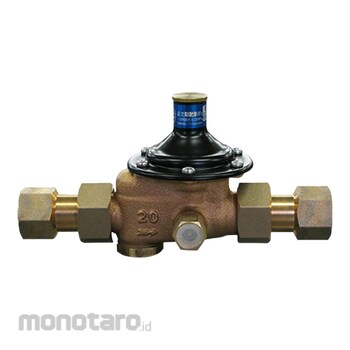

VENN Non-Return Constant Flow Valve For Water Supply To Door (For Water / Hot Water) RFC-44N Type
#Grup produk P110045975
Sebelum PPN:
Rp3.399.900 - Rp4.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Included Accessories | Union Fittings (Pipe / Nut / Gasket) Note 4., Thermal Insulation Case (Self-Extinguishing), Test Gag, Pressure Gauge Fittings (For Secondary Side, Body Mounted) |
|---|---|
| Material (Main Unit) | CAC406 |
| Strainer | 60 Mesh |
| Diaphragm Material | Chlorine Water Resistant EPDM |
| Fluid Temperature (°C) | 5 To 90 (5 To 40 When Using Pipe End Core) |
| Material (disc) | Chlorine Water Resistant EPDM |
| Maximum Decompression Ratio | 10:1 |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.025 |
| Mounting Direction | Horizontal / Vertical Free (Excluding Strainer Cap Upward) |
| Nominal Diameter A | 20 |
| Nominal Diameter B | 3/4 |
| Pressure (kPa) | [Check Valve Closed] 3 or More |
| Primary Side Suitable Pressure (MPa) | 1.0 or less |
| Suitable fluid | Tap Water / Hot Water |
| Tolerance (%) | Within ± 20 |
| Withstand Voltage Test Pressure (MPa) | 1.75 by Water Pressure |
