Durability is improved by adopting chlorine water resistant EPDM.
It is a low noise type. Vertical and horizontal piping is possible.

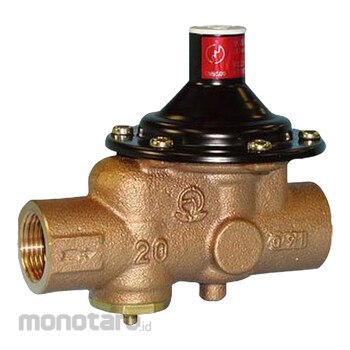

VENN New Standard Compliant Water Pressure Reducing Valve
#Grup produk P110045957
Spesifikasi
| Included Accessories | Thermal Insulation Case |
|---|---|
| Material (Main Unit) | CAC406 |
| Type (kPa) | For 80 |
| Pressure | Closing the non-return mechanism: 3 kPa or more, opening the negative pressure operating mechanism: -55 kPa or less, negative pressure operating closing: 50 kPa or less |
| Mechanism | Supplied accessories: Non-return mechanism, negative pressure operation mechanism, strainer (60 mesh), water drainage (RD-25SRN, 50SRN, 50SRHN type) |
| Diaphragm Material | NBR |
| End Connection | JIS Rc3 / 4 screw |
| Face-to-face Dimension (mm) | 115 |
| Flow Rate (L/minute) | Open: 30 or more |
| Fluid Temperature (°C) | 5 - 55 |
| Mounting Direction | Horizontal / Vertical Free (excluding strainer cap upward) |
| Nominal Diameter A | 20 |
| Nominal Diameter B | 3/4 |
| Pressure (kPa) | Primary side application: 750 or less, secondary side standard setting: 80 |
| Suitable fluid | Tap water |
| Withstand Voltage Test Pressure (MPa) | 1.75 by water pressure |
