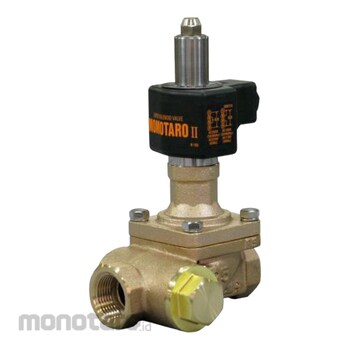

VENN Momotaro II Bronze Solenoid Valve [Screwed, with Strainer, Electric Close]
#Grup produk P110045391
Sebelum PPN:
Rp10.999.900 - Rp20.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material (Main Unit) | CAC408 |
|---|---|
| Type | Piston Type |
| Protection Class | Dust-Proof/Splash-Proof Type/For Indoor Use (When Using Outdoors, Use A TB-03 Type Terminal Box Together) |
| Operating Pressure Range (MPa) | 0 - 1.0 |
| Rated Voltage (V) | AC100/200 50/60Hz, AC110/220 60Hz common |
| Allowable Leakage | Steam / Water / Oil: None (visual pressure gauge), Air: 50 mL/min (standard condition) or less (at 0.05 to 1.0 MPa) |
| Ambient Temperature (°C) | 5 - 60 |
| End Connection | JIS Rc Thread |
| Fluid Temperature (°C) | 5 to 180 (100°C or less for hot water) |
| Fluid viscosity (cSt) | 20 or Less |
| Material (Valve Member) | C3604 with PTFE disc |
| Minimum Pressure Differential Before and After Valve (MPa) | 0 (0.03 If The Coil is Horizontal) |
| Mounting Direction | Horizontal / Vertical (Excluding The Coil Downward With Respect To The Mounting Piping) |
| Operation | Energized Closed |
| Strainer | 60 Mesh |
| Suitable fluid | Steam / water / air / oil (about kerosene / light oil) |
| Type of Insulation | H Class |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The PS-43 type series solenoid valve Momotaro II with a strainer has already been well received by the conventional PS-13 type series. It has made it easier to operate, and the durability performance has improved dramatically. In addition, it has become a more complete solenoid valve with consideration for the environment such as power saving and clearing the RoHS Directive regulation value.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
