A solenoid valve that can be used underwater (up to 1.5 m).
It is used for fountains, in pits, septic tanks, etc.
It can be used in a wide pressure range of MAX.1.0MPa.
Vertical and horizontal mounting is free. (PS, WS series)

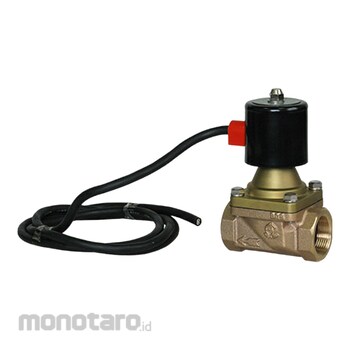

VENN Fountain Solenoid Valve PS-22K Type (Piston Type, Energized Open)
#Grup produk P110043870
Sebelum PPN:
Rp10.999.900 - Rp22.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material (Main Unit) | CAC |
|---|---|
| Protection Class | Underwater |
| Operating Pressure Range (MPa) | 0 - 0.1 |
| Allowable Leakage (ml/minute) | Water: None (Visual Pressure Gauge), Air: 50 (Standard Condition) Or Less (At 0.05 To 1.0 Mpa) |
| Ambient Temperature (°C) | 5 - 40 |
| End Connection | JIS Rc Thread |
| Fluid Temperature (°C) | 5 - 80 |
| Lead Wire (mm²) | 1.25, 2 Core 2m , 2PNCT |
| Minimum Pressure Differential Before and After Valve (MPa) | 0 (0.03 If The Coil Is Horizontal) |
| Mounting Direction | Horizontal / Vertical (Excluding The Coil Downward With Respect To The Mounting Piping) |
| Suitable fluid | Water / Air |
| Type of Insulation | Class B |
