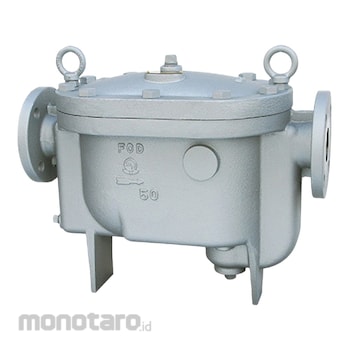

VENN FCD High Pressure/Large Amount Steam Trap
#Grup produk P110043630
Sebelum PPN:
Rp63.999.900 - Rp65.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material | (Float Case) SUS |
|---|---|
| Material (Main Unit) | FCD |
| Type | Steam Trap |
| Form | Float Type |
| Applicable Pressure Range (MPa) | 1.0 or Less |
| End Connection | JIS 10K FF Flange |
| Fluid Temperature (°C) | 184 or Less |
| Material (Valve Member) | SUS |
| Material (Valve Seat) | SUS |
| Maximum Discharge (L/hour) | Continuous 15840 |
| Mounting Direction | Upright Mounting On Horizontal Piping |
| Suitable fluid | Steam |
| Withstand Voltage Test Pressure (MPa) | (Main Body) 1.5 with Water Pressure |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
