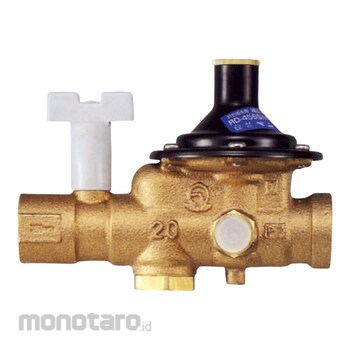

VENN Door-Side Water Supply Pressure Reducing Valve (with Stopcock)
#Grup produk P110042419
Spesifikasi
| Included Accessories | Thermal Insulation Case (Self-Extinguishing), Test Pack |
|---|---|
| Material (Main Unit) | CAC406 (Bronze Casting) |
| Screws | Both Ends Rc Thread |
| Diaphragm Material | Chlorine Water Resistant Rubber |
| End Connection | JIS Rc3 / 4 Screw |
| Fluid Temperature (°C) | 5 To 90 (5 To 40 When Using Pipe End Core) |
| Material (disc) | Chlorine Water Resistant Rubber |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.02 |
| Mounting | Horizontal And Vertical Freedom |
| Nominal Diameter A | 20 |
| Nominal Diameter B | 3/4 |
| Pressure Resistance (MPa) | Water Pressure: 1.75 |
| Pressure Resistance (kgf/cm²) | Water Pressure 17.5 (body) |
| Primary Side Suitable Pressure (MPa) | 1.0 or Less |
| Rated Flow (L/minute) | 50 (Differential Pressure 0.1MPa or More) |
| Suitable fluid | Tap Water / Hot Water |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Benkei series Water supply law performance standard compliant product Low noise type
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
