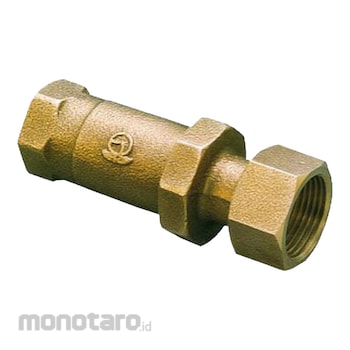

VENN Check Valve CS-2USN Type (Double Check Valve)
#Grup produk P110041711
Spesifikasi
| Material | [Main Part] Plastic |
|---|---|
| Material (Main Unit) | CAC406 |
| Operating Temperature Range (°C) | 5 to 90 (5 to 40 When Tube End Core is Used) *Fluid |
| Maximum Operating Pressure (MPa) | 1.0 or Less |
| End Connection | Inlet: JIS G1 (water screw) union nut, Outlet: JIS Rc3 / 4 screw |
| Material (disc) | EPDM |
| Mounting Direction | Free (For Vertical Piping, Apply From Bottom To Top Flow Direction) |
| Nominal Diameter A | 20 |
| Nominal Diameter B | 3/4 |
| Pressure (MPa) | (1/2 × D + 30mm) water level to 1.5 D: Outer diameter of piping |
| Pressure loss (kPa) | [Valve] 40 or less |
| Rated Flow (L/minute) | 38 |
| Suitable fluid | Tap Water / Hot Water |
| Valve | Double check valve |
| Withstand Voltage Test Pressure (MPa) | 1.75 by water pressure |
| Working Pressure (kPa) | [Valve] 40 or less |
