Adoption of chlorine water resistant EPDM.
Hygienic structure without liquid pool.
Reliable operation from low differential pressure to high differential pressure.
Water pressure test is possible with the pressure reducing valve installed even after construction.
Easy and simple new test gag method adopted.

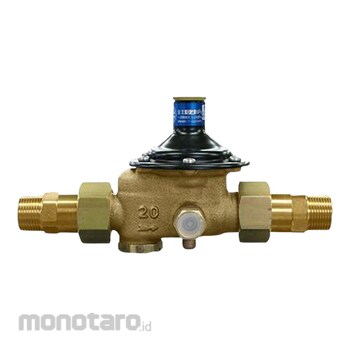

VENN Benkei New Standard Compliant Door-To-Door Water Supply Pressure Reducing Valve
#Grup produk P110040776
Spesifikasi
| Included Accessories | Union Fittings (Pipes, Nuts, Gaskets), Heat Insulation Cases (Self-Extinguishing), Test Gags, Pressure Gauge Fittings (Secondary Side, Body Installed) |
|---|---|
| Material (Main Unit) | CAC406 |
| Strainer | 60 Mesh |
| Diaphragm Material | Chlorine Water Resistant EDPM |
| End Connection | P (male union joint): JIS Rc3 / 4 thread (for both P and V), B (female union joint): JIS Rc3 / 4 thread (for both P and V, movable core built-in), C (male / female union joint) : JIS Rc3 / 4 screw (core is the same as above) |
| Flow Rate (L/minute) | Rating: 50 (Differential Pressure 0.1 or More) |
| Fluid Temperature (°C) | 5 - 90 |
| Maximum Decompression Ratio | 10:01:00 |
| Minimum Differential Pressure (MPa) | Before and After The Valve: 0.02 |
| Mounting Direction | Horizontal / Vertical Free (excluding strainer cap upward) |
| Nominal Diameter A | 20 |
| Nominal Diameter B | 3/4 |
| Pressure (MPa) | Primary Side Application: 1.0 Or Less, Secondary Side Adjustment Pressure Range: 0.20 To 0.30, Secondary Side Setting: 0.20, 0.25 |
| Suitable fluid | Tap Water / Hot Water |
| Withstand Voltage Test Pressure (MPa) | 1.75 by Water Pressure |
