The amount of air intake when negative pressure is generated is large. (Rapid intake function)
Reliable air discharge operation under pressure. (Exhaust function under pressure)
Large amount of air is discharged during initial water flow. (Initial exhaust function)
There is no water discharge when exhausting.
The intake and exhaust ports are rotatable. Built-in net in the intake part.

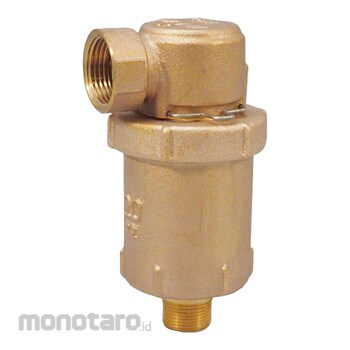

VENN AFV4N-F Water Supply Law Compliant Bronze Intake / Exhaust Valve
#Grup produk P110040475
Spesifikasi
| Material (Main Unit) | CAC406 |
|---|---|
| Type | Made of Bronze |
| Fluid Temperature (°C) | 5 - 40 |
| Applicable Pressure Range (MPa) | 0.01 - 1 |
| End Connection | Inlet: JIS R screw Note., Intake / exhaust port: JIS Rc1 screw |
| Material (Float) | PP resin |
| Material (Valve / Valve Seat) | PP resin, CAC, EPDM |
| Mounting Direction (°) | Upright Mounting within 5 from Vertical |
| Suitable fluid | Tap Water |
