17.5mm width. Push-in Plus terminal block type.
Flicker off / on start switchable.
DIN rail mounting type.
Eight types of range can be selected from 0.1 seconds to 1200 hours.

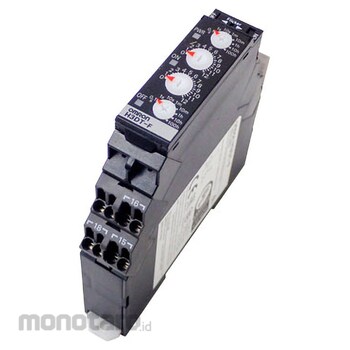

OMRON Twin Timer
#Grup produk P110037657
Spesifikasi
| Type of Sign | DIN rail mounting |
|---|---|
| Protection Class | IP30 (terminal is IP20) |
| Contact | 1c |
| Adjustable Time | (Time range: Set time range) 0.1s: 0.1 to 1.2s, 1s: 1 to 12s, 10s: 10s to 120s, 1min: 1 to 12min, 10min: 10 to 120min, 1h: 1 to 12h, 10h: 10 to 120h, 100h: 100-1200h |
| Ambient Humidity to Use (%) | 25-85 |
| Influence of Voltage | ± 0.5% (percentage of maximum scale) or less (± 0.5% ± 10ms or less for 1.2s range) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Operating Temperature Range (°C) | -20 to +60 (no icing) |
| Output Type | Relay 1c |
| Power Consumption | At 240 VAC: 1.9 VA or less, 240 VDC: 0.6 W or less, 24 VDC: 0.3 W or less |
| Power Supply Voltage (V) | AC/DC24～240 |
| Rated Insulation Voltage (V) | AC250 |
| Safety Standard | cULus: UL 508/CSA C22.2 No.14 EN 61812-1: Pollution Degree 2/Overvoltage Category III CCC: Pollution Degree 2/Overvoltage Category II GB 14048.5 LR: Category ENV1.2 |
| Shock Resistance Destruction (m/s²) | 1000, 6 Directions 3 Times Each |
| Storage Temperature (°C) | -40 to +70 (but no freezing) |
| Vibration Resistance (Destruction) | 10~55Hz, single amplitude 0.75mm, 3 directions, 2h each |
| Withstand Voltage | 2900 VAC 50/60 Hz 1 min (between live metal part and operating part) 2000 VAC 50/60 Hz 1 min (between control output and operating circuit) 1000 VAC 50/60 Hz 1 min (between discontinuous contacts) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
17.5mm width. Push-in Plus terminal block type. Flicker off/on start switchable. DIN rail mounting type. Eight ranges can be selected from 0.1 seconds to 1200 hours.Use
Control OutputContact output: AC250V 5A resistive load (cosΦ=1), DC30V 5A resistive load, DC125V 0.15A max. resistive load, DC125V 0.1A max. L/R=7ms Minimum applicable load: DC5V 10mA (P level, reference value) contact Material: Ag alloy (Recommended fuse: BLN5 (little fuse), 0216005MXEP)
EMC Standard to Conform
(EMI) EN 61812-1 Radiated field strength EN 55011 class B Noise terminal voltage EN 55011 class B Harmonic current EN 61000-3-2 Voltage fluctuations, flicker EN 61000-3-3 (EMS) EN 61812-1 Electrostatic discharge Immunity EN 61000-4-2 Field Strength Immunity EN 61000-4-3 Burst Noise Immunity EN 61000-4-4 Surge Immunity EN 61000-4-5 Conducted Noise Immunity EN 61000-4-6 Voltage Dips/Interruptions Immunity EN 61000-4-11
