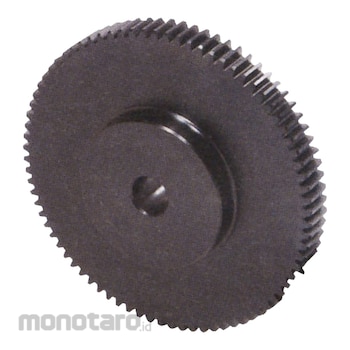

KHK Gears (Kohara Gear Industry) SS Spur Gear
#Grup produk P110036001
Spesifikasi
| Type | Spur gear |
|---|---|
| Material | S45C |
| Shape | S2 |
| Number of Teeth | 120 |
| Module | 1.5 |
| Accuracy class | JIS N8 class (JIS B 1702-1: 1998), former JIS class 4 (JIS B 1702: 1976) |
| Backlash (mm) | 0.18-0.38 |
| Gear Surface Treatment | Cutting |
| Hole Diameter A (Φmm) | 15 |
| Hub Diameter (Φmm) | 70 |
| Hub Length F (mm) | 10 |
| Overall Length G (mm) | 25 |
| Pressure Angle (°) | 20 |
| Surface Treatment | Black dyed |
| Tolerance A | H7 |
| Tooth Surface Hardness | 194HB or less |
| Tooth Type | Normal teeth |
| Tooth Width E (mm) | 15 |
