It is a low-pressure model of the best-selling U series.
Since it is a top-pulling type, element replacement is easy.
The flow direction can be easily changed by turning the top cover 180 °.
It is installed in-line to maintain the cleanliness of oil in the hydraulic circuit and protect the hydraulic equipment from contamination.
If the delivery destination is a private house (detached house / apartment house), the shop name is required. Please note that delivery may not be possible if there is no store name. * Depending on the delivery location, the delivery date may be postponed and additional shipping charges may be incurred. * For non-general hydraulic oil, packing O-ring and other items will change.

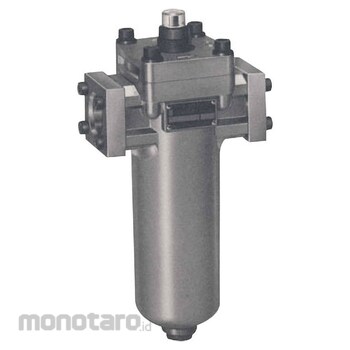

Taisei Kogyo Line Filter
#Grup produk P110032856
Spesifikasi
| Dimension H (mm) | 189 |
|---|---|
| Maximum Operating Pressure (MPa) | 3.5 |
| Dimension A (mm) | 115 |
| Dimensions d (mm) | 83 |
| Dimension B (mm) | 96 |
| Dimension C (mm) | 54 |
| Dimension H1 (mm) | 50 |
| Dimension H2 (mm) | 139 |
| Dimension W (mm) | 45 |
| Filtraton Accuracy (micron) | 10 |
| Suitable fluid | General hydraulic oil |
| Type of Filter Material | General filter paper |
| d2xl | M8x14 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
This is a low pressure model of the best-selling U series. Since the top is removed, element replacement is easy. The flow direction can be easily changed by rotating the top cover 180°.Use
Installed in-line to maintain oil cleanliness in the hydraulic circuit and protect hydraulic equipment from contamination.Ulasan Produk
