W29 x D10 x H32 mm I / O slim relay Slim type for input (DC, AC) and output (1a, 1b, 1c).
High durability of 1 million times (DC24V 5A) for output.
With operation display mechanism that allows you to check the operation (1a specifications only)
* Rated current and coil resistance are values when the coil temperature is + 23 ° C, and tolerances are AC rated current + 15%, -20%, coil resistance ± 15%.
* The AC specifications are 4 rated specifications when using the relay separately (single socket type P7TF-05), but 3 rated specifications when using it as the type G7TC. )
* Operating characteristics are values when the coil temperature is + 23 ° C.
* The maximum allowable voltage is the maximum value of the voltage allowable fluctuation range of the relay coil operating power supply, and is the value when the ambient temperature is + 23 ° C. It is not continuous tolerance.

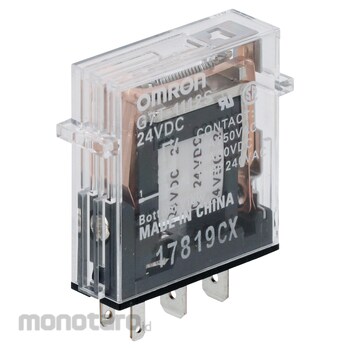

OMRON I/O Relay
#Grup produk P110032476
Spesifikasi
| Coil Rated Voltage (V) | DC24 |
|---|---|
| Type | Power relay |
| Number of Poles | 1 pole |
| Protection Class | In a case |
| Contact Configuration | 1a |
| Ambient Humidity to Use | 5～85%RH |
| Case Color | Transparent |
| Contact Material | AgSnIn |
| Contact Resistance (miliΩ) | 50 or less (DC5V 1A energization voltage drop method) |
| Electrical Durability | 1 million times (at rated load) (ambient temperature + 23 ° C) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V insulation resistance meter) |
| Maximum Switching Frequency (times/hour) | 18000 (When rated operating voltage is applied, contact bounce is not included) |
| Mechanical Durability | 50 million times |
| Operating Ambient Temperature (°C) | -40 to +70 (with no icing or condensation) |
| Rated Current (mA) | 21 |
| Shock Resistance Malfunction (m/s²) | 200 |
| Terminal Shape | Plug-in terminal |
| Vibration Resistance (Malfunction) | 10 to 55 to 10Hz Single amplitude 0.5mm (double amplitude 1.0mm) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
I/O slim relay of W29 x D10 x H32mm Slim type for both input (DC, AC) and output (1a, 1b, 1c). High durability of 1 million times (DC24V 5A) for output.
Equipped with an operation display mechanism that allows you to check the operation (1a specification only)
