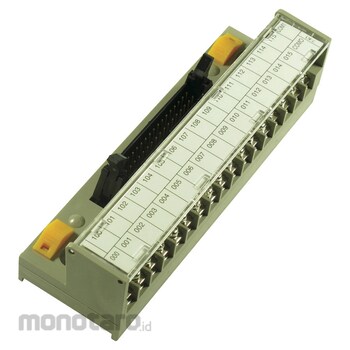

TOYOGIKEN Connector Terminal
#Grup produk P110031097
Spesifikasi
| Type | Interface compatible PLC / O3 |
|---|---|
| Type of Sign | DIN rail / Direct mounting |
| Number of Poles | 40P |
| Compatible Cable (mm²) | Up to 1.25 |
| Connector | Hirose Electric Co., Ltd./MIL standard connector |
| Current Rating, JIS (A) | 0.5/COM2 |
| Insulation Resistance (MΩ) | 100 or more (DC500V mega) |
| Operating Ambient Temperature (°C) | -10 to +50 (no freezing or condensation) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Insulation Voltage (V) | AC/DC125 |
| TRUSCO Number | 451-4203 |
| Terminal Connection | Screw / Flat |
| Terminal Spacing (mm) | 7 |
| Terminal screw | M3 |
| Tightening Torque (N m) | 1.2 |
| Withstand Voltage (V/minute) | AC600 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
PLC compatible interface series that eliminates the empty pin part of the connector from the terminal block body Since the signal arrangement is lined up from the left, wiring is easy.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
A PLC-compatible interface series in which the unused pins of the connector have been eliminated from the terminal block body. The signals are arranged from the left, making wiring easy.Ulasan Produk
