It is a system that demonstrates its power in machining that requires a long and extra long protruding length.
Modular heads with blade diameters of Φ18, Φ22, Φ28, and Φ35 do not interfere with the shank.
When ABPFM10 is attached to the ASC12-6.5 series carbide shank, it can be used as a taper ball with a single angle of 1.5 °.
* Make sure that there are no scratches, chips, or other deposits on the tool end face and inlay part of the modular mill, special shank, and special arbor.
* Do not apply grease or other lubricants to the tool end face and modular thread of the modular mill, dedicated shank, and dedicated arbor.
(If the coefficient of friction of the end face and the screw part is low, the rotational torque will generate a large axial force (force that pulls the screw), which may cause the screw to break.)
* For Φ40 dimensions, use a protruding length of 200 mm or less as a guide.

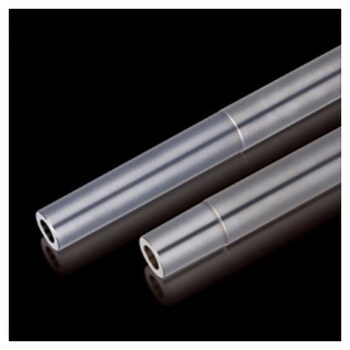

MOLDINO (Former Hitachi Tool) Carbide Shank
#Grup produk P110030955
Spesifikasi
| Overall Length (mm) | 310 |
|---|---|
| Shank Length (mm) | 120 |
| Applicable Cutter | Φ30, Φ32, Φ35, Φ40 |
| Mounting Screw Size | M16 |
| Air Hole | Yes |
| Connection Diameter | 17 |
| Neck diameter (Φmm) | 28 (, Shank lower diameter :-) |
| Shank Diameter (mm) | 32 |
| Under Neck Length (mm) | 190 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
"This system is effective for machining that requires long or extra long overhang lengths. The modular heads with cutting diameters of Φ18, Φ22, Φ28, and Φ35 do not interfere with the shank.
When the ABPFM10 is attached to an ASC12-6.5 series carbide shank, it can be used as a tapered ball with a single angle of 1.5°."
