A standard one-touch fitting used for general pneumatic piping.
For branch piping from female threads in the 90 ° direction on both sides.
* Do not use for any other purpose.

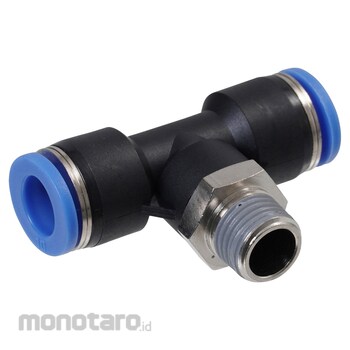

monotaro Branch Tee
#Grup produk P110030672
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Material | Lock claw: SUS304, release ring: POM, guide ring: zinc alloy, metal body: brass (nickel plating), resin body: PBT resin |
|---|---|
| Fluid | Air |
| Dimension L (mm) | 39.5 |
| Dimension H (mm) | 17 |
| Maximum Operating Pressure (MPa) | 0.9 |
| Connector Thread | PT1/4 |
| Dimension A (mm) | 10 |
| Dimension E (mm) | 54.5 |
| Operating Temperature Range (°C) | 0-60 |
| Suitable Tube Outer Diameter D (mm) | 10 |
| Type Of Thread | PT |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
A standard one-touch fitting used for general pneumatic piping.Use
For branch piping from female threads in 90° directions on both sides.Dokumentasi Produk
