INA Radial Insert Ball Bearing Tipe GLE
#Grup produk P110028561
Spesifikasi
| Width Retaining Slot (b) (mm) | 7 |
|---|---|
| Bore Diameter (D) (mm) | 20 |
| Outside Diameter (DSP) (mm) | 47 |
| Fatigue Load Limit, Radial (Cur) (N) | 345 |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 13600 |
| Basic Static Load Rating, Radial (C0r) (N) | 6600 |
| Calculation Factor (f0) | 13.1 |
| Distance Raceway (S) (mm) | 15.6 |
| Distance to Lubrication Hole (Ca) (mm) | 4 |
| Height Retaining Slot (N) (mm) | 7 |
| Outside Diameter Seal (D1) (mm) | 37.4 |
| Rib Diameter Inner Ring (d1) (mm) | 27.6 |
| Sealing Total Width (C2) (mm) | 16.6 |
| Width B (mm) | 34.1 |
| Width Outer Ring C (mm) | 14 |
| Width Retaining Slot Clearance | H11 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

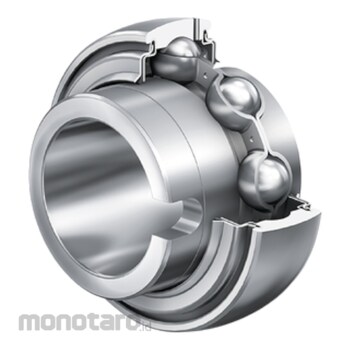

Radial insert ball bearings GLE..-KRR-B, spherical outer ring, non-locating bearing, drive slot in inner ring, R seals on both sides
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
