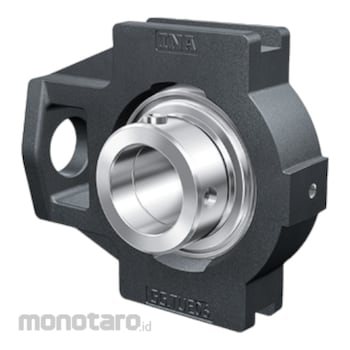

INA Take-up Housing TTUE Type
#Grup produk P110027784
Spesifikasi
| Height (H) (mm) | 102 |
|---|---|
| Length Total (L) (mm) | 131.5 |
| Distance of Raceway To Locking Collar (S1) (mm) | 32.5 |
| Width Guidance Groove (A1) (mm) | 12 |
| Bore Diameter (D) (mm) | 35 |
| Distance Guidance Grooves (H1) (mm) | 89 |
| Distance Shaft Axis (L1) (mm) | 80 |
| Fixing Bore (N) (mm) | 22 |
| Height Housing Fixing Side (T) (mm) | 64 |
| Height Recess (N2) (mm) | 36.5 |
| Length Fixed Link (L2) (mm) | 13 |
| Length Guidance Groove (L3) (mm) | 63 |
| Lower Distance Guidance Groove Tolerance (mm) | -0.15 |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Minimum Operating Temperature (Tmin) (°C) | -20 |
| Upper Distance Guidance Groove Tolerance (mm) | 0.15 |
| Width Guidance Groove Clearance | H13 |
| Width Housing Fixing Side (A) (mm) | 40 |
| Width Recess (N1) (mm) | 18 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Take-up housing units TTUE, cast iron housing, radial insert ball bearing with eccentric locking collar, T seals
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
