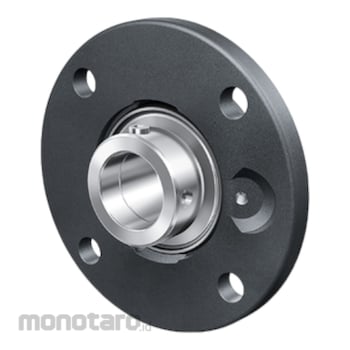

INA Flanged Housing Unit TME Type
#Grup produk P110027748
Spesifikasi
| Height Housing (A) (mm) | 32 |
|---|---|
| Connection Thread For Lubrication (Q) | M6 |
| Locking Collar Total Width (B1) (mm) | 66 |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 66K |
| Basic Static Load Rating, Radial (C0r) (N) | 44K |
| Chamfer Width (S) (mm) | 6 |
| Diameter Spigot (Z) (mm) | 150 |
| Diameter Spigot Clearance | h8 |
| Fixing Bore (N) (mm) | 18 |
| Height Flange (H) (mm) | 215 |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Minimum Operating Temperature (Tmin) (°C) | -20 |
| Number of Screwing Holes (n) | 4 |
| Pitch Circle Diameter (holes) (J) (mm) | 177 |
| Thickness of Flange (A1) (mm) | 18 |
| Total Height Unit (U) (mm) | 44.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Housing units TME, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, T seals
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
