INA Deep Groove Ball Bearing SK Type
#Grup produk P110027553
Spesifikasi
| Sealing Total Width (C2) (mm) | 16.5 |
|---|---|
| Basic Dynamic Load Rating, Radial (Cr) (N) | 14900 |
| Rib Diameter Inner Ring (d1) (mm) | 33.8 |
| Basic Static Load Rating, Radial (C0r) (N) | 7800 |
| Calculation Factor (f0) | 13.8 |
| Maximum Distance Hexagonal Bore (F) (mm) | 26.5 |
| Outside Diameter D (mm) | 52 |
| Outside Diameter Seal (D1) (mm) | 42.5 |
| Radius Hexagonal Bore (r) (mm) | 0.12 |
| Width Across Flats Lower Tolerance (mm) | 0.05 |
| Width Across Flats Upper Tolerance (mm) | 0.15 |
| Width Across Flats d (inch) | 22.225 |
| Width Across Flats d (mm) | 22.225 |
| Width B (mm) | 25.4 |
| Width Outer Ring C (mm) | 15 |
| Width of Flats (d) (mm) | 22.225 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

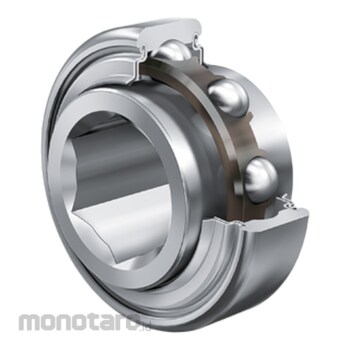

Self-aligning deep groove ball bearings SK..-KRR, Cylindrical outer ring, inner ring with hexagonal bore, R seal on both sides
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
