INA Plummer Block Housing Unit RPB Type
#Grup produk P110027377
Spesifikasi
| Load Carrying Capacity (Housing) (C0r G) (N) | 900 |
|---|---|
| Length Total (L) (mm) | 98.4 |
| Height (H2) (mm) | 50.1 |
| Distance Shaft Axis (h) (mm) | 25.4 |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 10100 |
| Basic Static Load Rating, Radial (C0r) (N) | 4750 |
| Bearing Designation | RAE17-XL-NPP-B |
| Bore Diameter (D) (mm) | 17 |
| Calculation Factor (f0) | 13 |
| Distance Fixing Bore (J) (mm) | 76 |
| Fixing Bore (N) (mm) | 9.5 |
| Heigth (base) (H1) (mm) | 3.3 |
| Housing | GEH47-BT |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Minimum Operating Temperature (Tmin) (°C) | -20 |
| Rubber Interliner Designation | GRG.RABR40/47 |
| Width (Head) (A1) (mm) | 22.3 |
| Width (base) (A) (mm) | 31.8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

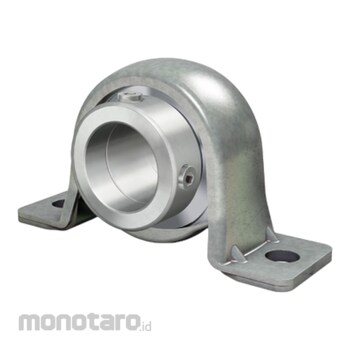

Plummer block housing units RPB, sheet steel housing, radial insert ball bearing with eccentric locking collar and rubber interliner, P seals
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
