INA Radial Roller Bearing RNAO Type
#Grup produk P110027270
Spesifikasi
| Basic Dynamic Load Rating, Radial (Cr) (N) | 10K |
|---|---|
| Basic Static Load Rating, Radial (C0r) (N) | 9900 |
| Fatigue Load Limit, Radial (Cur) (N) | 1430 |
| Limiting Speed for Grease Lubrication (rpm) | 15500 (nG Grease) |
| Limiting Speed nG (rpm) | 26000 |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Maximum Recess Radius (ra max) (mm) | 0.3 |
| Minimum Operating Temperature (Tmin) (°C) | -30 |
| Minimum chamfer dimension rmin (mm) | 0.3 |
| Outside Diameter D (mm) | 22 |
| Raceway Diameter Outer Ring E (mm) | 18 |
| Reference Speed (n ϑr) (1/minute) | 19700 |
| Shoulder Diameter Axial Guidance Nk/Housing (Db) (mm) | 12.3 |
| Shoulder Diameter Axial Guidance Nk/Shaft (db) (mm) | 17.6 |
| Shoulder Diameter Outer Ring (Da) (mm) | 18.3 |
| Under Roller Diameter (Fw) (mm) | 12 |
| Width B (mm) | 12 |
| Width Outer Ring C (mm) | 12 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

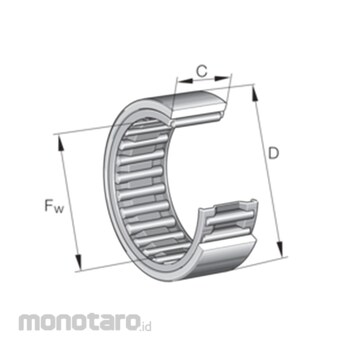

Radial roller bearing RNAO..-TV
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
