INA Flanged Housing Unit RCSM Type
#Grup produk P110027216
Spesifikasi
| Height Housing (A) (mm) | 27 |
|---|---|
| Flange Thickness (S) (mm) | 1.5 |
| Distance Fixing Bore (J) (mm) | 92 |
| Fixing Bore (N) (mm) | 10.5 |
| Flange Width (L) (mm) | 70 |
| Height Flange (H) (mm) | 114 |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Minimum Operating Temperature (Tmin) (°C) | -20 |
| Number of Housings | 2 |
| Number of Screwing Holes (n) | 2 |
| Shoulder Diameter Housing (V) (mm) | 68 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

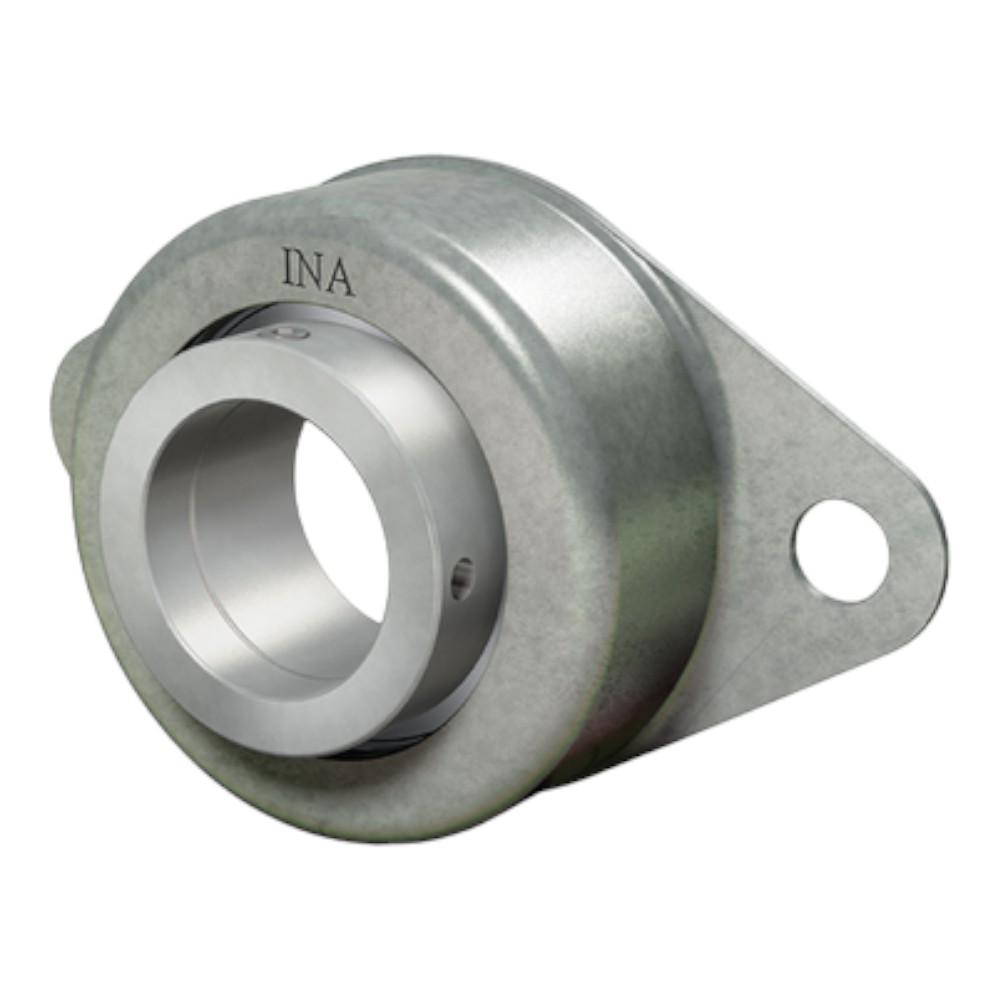

Housing units RCSMF, two-bolt flanged housing units, sheet steel, rubber interliner, eccentric locking collar, P seals
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
