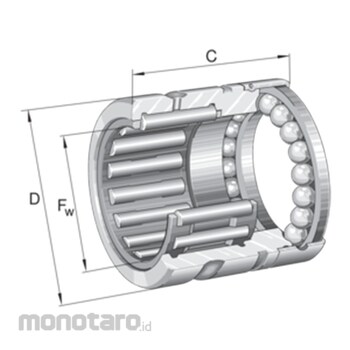

INA Needle Roller/Axial Ball Bearing NX Type
#Grup produk P110026916
Spesifikasi
| Limiting Speed nG (rpm) | 15000 |
|---|---|
| Fatigue Load Limit, Axial (Cua) (N) | 195 |
| Maximum Recess Radius (ra max) (mm) | 0.3 |
| Basic Dynamic Load Rating, Axial (Ca) (N) | 3150 |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 3250 |
| Basic Static Load Rating, Axial (C0a) (N) | 4300 |
| Basic Static Load Rating, Radial (C0r) (N) | 2650 |
| Bore Diameter (Fw) (mm) | 7 |
| Bore Diameter of Shaft Washer (dw) (mm) | 7 |
| Connection Diameter Snap Ring (D1) (mm) | 16.5 |
| Connection Width With Snap Ring (C2) (mm) | 10 |
| Distance To Lubrication Hole (C1) (mm) | 4.7 |
| Distance To Lubrication Hole (C2) (mm) | 4.7 |
| Fatigue Load Limit, Radial (Cur) (N) | 420 |
| Height (C) (mm) | 18 |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Minimum Operating Temperature (Tmin) (°C) | -30 |
| Mounting Dimension Shaft Shoulder (da) (mm) | 9.6 |
| Outside Diameter D (mm) | 14 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Needle roller/axial ball bearings NX, single direction axial component, for oil lubrication
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
