INA Flanged Housing Unit RMEL Type
#Grup produk P110026837
Spesifikasi
| Height Housing (A) (mm) | 20.5 |
|---|---|
| Connection Thread For Lubrication (Q) | M6 |
| Bore Diameter (D) (mm) | 30 |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 19500 |
| Basic Static Load Rating, Radial (C0r) (N) | 11300 |
| Diameter Spigot (Z) (mm) | 80 |
| Distance Raceway (A2) (mm) | 2 |
| Fatigue Load Limit, Radial (Cur) (N) | 520 |
| Fixing Bore (N) (mm) | 11.5 |
| Height Flange (H) (mm) | 125 |
| Housing | ME06-N |
| Maximum Operating Temperature (Tmax) (°C) | 180 |
| Minimum Operating Temperature (Tmin) (°C) | -40 |
| Number of Housings | 1 |
| Number of Screwing Holes (n) | 4 |
| Pitch Circle Diameter (holes) (J) (mm) | 100 |
| Thickness of Flange (A1) (mm) | 9.5 |
| Total Height Unit (U) (mm) | 36.5 |
| Width B (mm) | 36.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

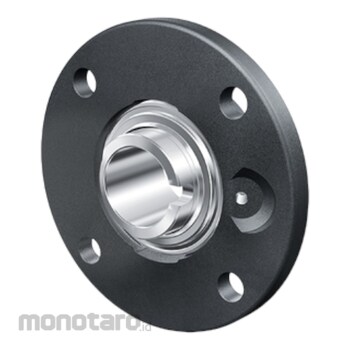

Flanged housing unit RMEL..-N
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
