INA Flanged Housing Unit RHE Type
#Grup produk P110026554
Spesifikasi
| Length Total (L) (mm) | 114 |
|---|---|
| Connection Thread For Lubrication (Q) | M6 |
| Distance Shaft Axis (L1) (mm) | 72 |
| Height Housing Fixing Side (T) (mm) | 40 |
| Bearing Designation | GE30-XL-KRR-B |
| Bore Diameter (D) (mm) | 30 |
| Housing | HE06 |
| Housing Total Width (M) (mm) | 85 |
| Length of Guidance Face (W2) (mm) | 40 |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Minimum Operating Temperature (Tmin) (°C) | -20 |
| Thread Depth (K1) (mm) | 24 |
| Thread Fixing Bore (K) | M24 |
| Width Housing (A2) (mm) | 32 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

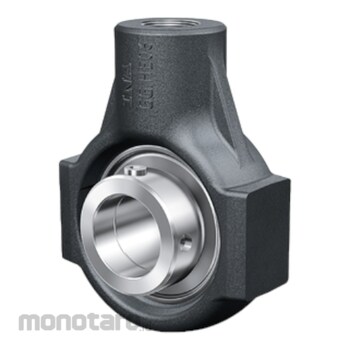

Take-up housing units RHE, cast iron housing, radial insert ball bearing with eccentric locking collar, R seals
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
