INA Flanged Housing Unit RFE Type
#Grup produk P110026332
Spesifikasi
| Flange Width (H) (mm) | 145 |
|---|---|
| Height Housing (A) (mm) | 26 |
| Bore Diameter (D) (mm) | 40 |
| Fatigue Load Limit, Radial (Cur) (N) | 840 |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 34500 |
| Basic Static Load Rating, Radial (C0r) (N) | 19800 |
| Diameter Spigot (Z) (mm) | 100 |
| Diameter Spigot Clearance | h8 |
| Distance Fixing Bore (J) (mm) | 120 |
| Distance Raceway (A2) (mm) | 11.5 |
| Fixing Bore (N) (mm) | 11.5 |
| Height Flange (H) (mm) | 145 |
| Height Spigot (T1) (mm) | 4 |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Minimum Operating Temperature (Tmin) (°C) | -20 |
| Number of Screwing Holes (n) | 4 |
| Pitch Circle Diameter (holes) (J) (mm) | 120 |
| Thickness of Flange (A1) (mm) | 11.5 |
| Total Height Unit (U) (mm) | 46.4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

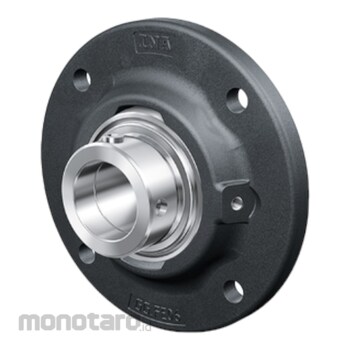

Housing units RFE, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, R seals
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
