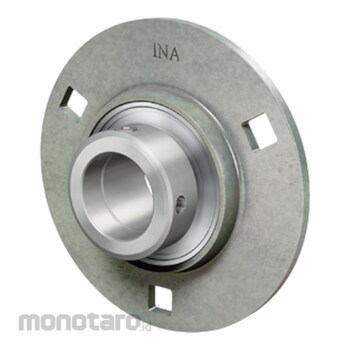

INA Flanged Housing Unit GRA Type
#Grup produk P110025944
Spesifikasi
| Flange Width (H) (mm) | 112.7 |
|---|---|
| Load Carrying Capacity (Housing) (C0r G) (N) | 5K |
| Fixing Square (N) (mm) | 10.5 |
| Height Housing (A) (mm) | 8.7 |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 20700 |
| Basic Static Load Rating, Radial (C0r) (N) | 11300 |
| Bore Diameter (D) (mm) | 30 |
| Fatigue Load Limit, Radial (Cur) (N) | 480 |
| Flange Thickness (S) (mm) | 2.5 |
| Height Flange (H) (mm) | 112.7 |
| Locking Collar Total Width (B1) (mm) | 35.8 |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Minimum Operating Temperature (Tmin) (°C) | -20 |
| Number of Screwing Holes (n) | 3 |
| Number of Screws (n) | 3 |
| Outside Diameter Eccentric Locking Collar (d3) (mm) | 37.5 |
| Pitch Circle Diameter (holes) (J) (mm) | 90.5 |
| Shoulder Diameter Housing (V) (mm) | 71 |
| Total Height Unit (U) (mm) | 29.2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Housing units GRA, three/four-bolt flanged housing units, sheet steel, eccentric locking collar, P seals
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
