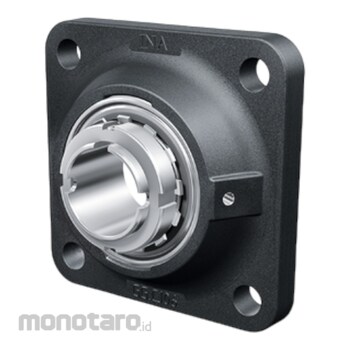

INA Flanged Housing Unit RCJA Type
#Grup produk P110025926
Spesifikasi
| Height Housing (A) (mm) | 32.5 |
|---|---|
| Shoulder Diameter Housing (V) (mm) | 100 |
| Connection Thread For Lubrication (Q) | M6 |
| Outside Diameter Locking Device (d3) (mm) | 52 |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 24900 |
| Basic Static Load Rating, Radial (C0r) (N) | 15300 |
| Bearing Designation | GSH35-XL-2RSR-B |
| Bore Diameter (D) (mm) | 35 |
| Distance Fixing Bore (J) (mm) | 92 |
| Distance Raceway (A2) (mm) | 21 |
| Fixing Bore (N) (mm) | 14 |
| Flange Width (L) (mm) | 118 |
| Housing | GEHCJ07-GG-N |
| Locking Collar Total Width (B1) (mm) | 34 |
| Maximum Operating Temperature (Tmax) (°C) | 100 |
| Minimum Operating Temperature (Tmin) (°C) | -20 |
| Number of Screwing Holes (n) | 4 |
| Thickness of Flange (A1) (mm) | 12.5 |
| Total Height Unit (U) (mm) | 46.2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Flanged housing unit RCJA..-N
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
