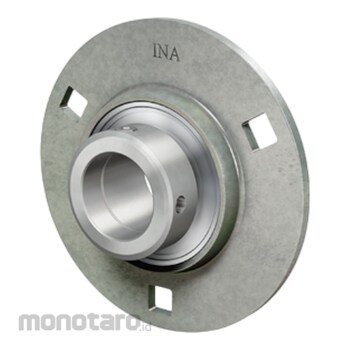

INA Flanged Housing Unit RAY Type
#Grup produk P110025801
Spesifikasi
| Flange Width (H) (mm) | 90.5 |
|---|---|
| Load Carrying Capacity (Housing) (C0r G) (N) | 3200 |
| Fixing Square (N) (mm) | 8.7 |
| Height Housing (A) (mm) | 8 |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 13600 |
| Basic Static Load Rating, Radial (C0r) (N) | 6600 |
| Bearing Designation | AY20-XL-NPP-B |
| Bore Diameter (D) (mm) | 20 |
| Flange Thickness (S) (mm) | 2 |
| Height Flange (H) (mm) | 90.5 |
| Housing | FLAN47-MSB |
| Maximum Operating Temperature (Tmax) (°C) | 120 |
| Minimum Operating Temperature (Tmin) (°C) | -20 |
| Number of Housings | 2 |
| Number of Screwing Holes (n) | 3 |
| Pitch Circle Diameter (holes) (J) (mm) | 71.5 |
| Shoulder Diameter Housing (V) (mm) | 55 |
| Total Height Unit (U) (mm) | 20 |
| Width B (mm) | 25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Housing units RAY, three/four-bolt flanged housing units, sheet steel, grub screws in inner ring, P seals
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
