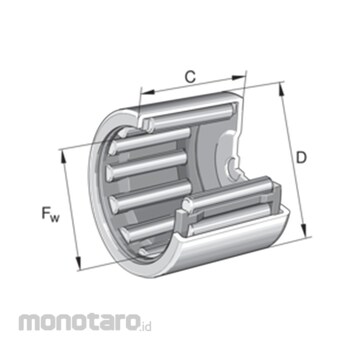

INA Drawn Cup Needle Roller Bearing Closed End BK Type
#Grup produk P110025069
Spesifikasi
| Under Roller Diameter (Fw) (mm) | 9 |
|---|---|
| Limiting Speed nG (rpm) | 26500 |
| Limiting Speed for Grease Lubrication (rpm) | 16000 (nG Grease) |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 4250 |
| Basic Static Load Rating, Radial (C0r) (N) | 4650 |
| Fatigue Load Limit, Radial (Cur) (N) | 610 |
| Maximum Operating Temperature (Tmax) (°C) | 140 |
| Minimum Operating Temperature (Tmin) (°C) | -30 |
| Minimum Width To Base of Drawn Cup With Closed End (Ct min) (mm) | 8.4 |
| Minimum chamfer dimension rmin (mm) | 0.4 |
| Outside Diameter D (mm) | 13 |
| Reference Speed (n ϑr) (1/minute) | 20600 |
| Sealing Ring | GR9X13X3 |
| Sealing Ring 2 | G9X13X3 |
| Suitable Inner Rings Ir | IR6X9X12-XL |
| Width Outer Ring C (mm) | 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Drawn cup needle roller bearings with closed end BK, to DIN 618/ISO 3245
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
